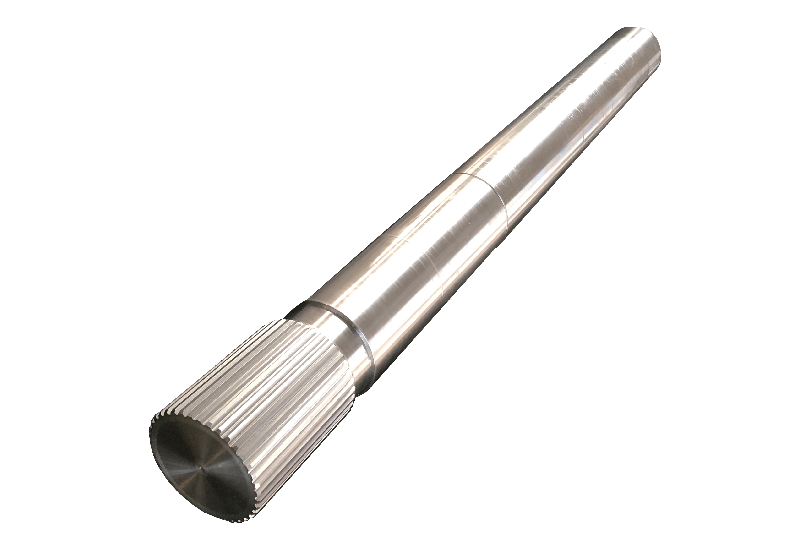

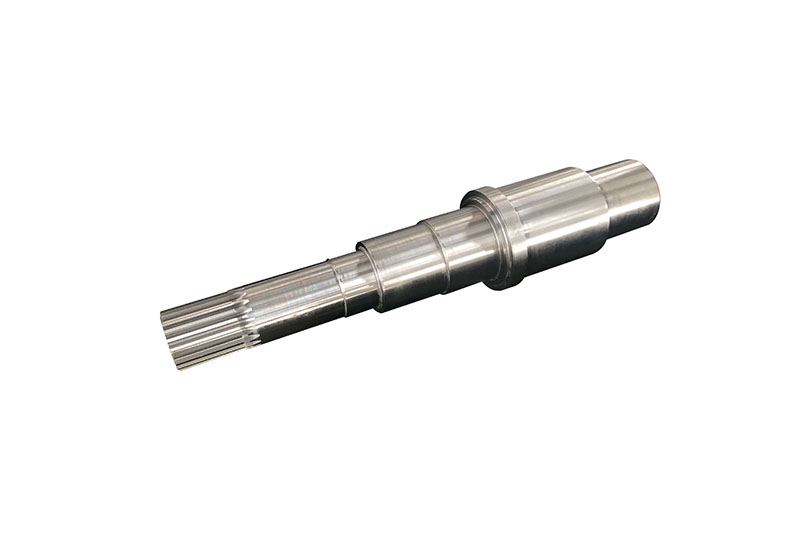

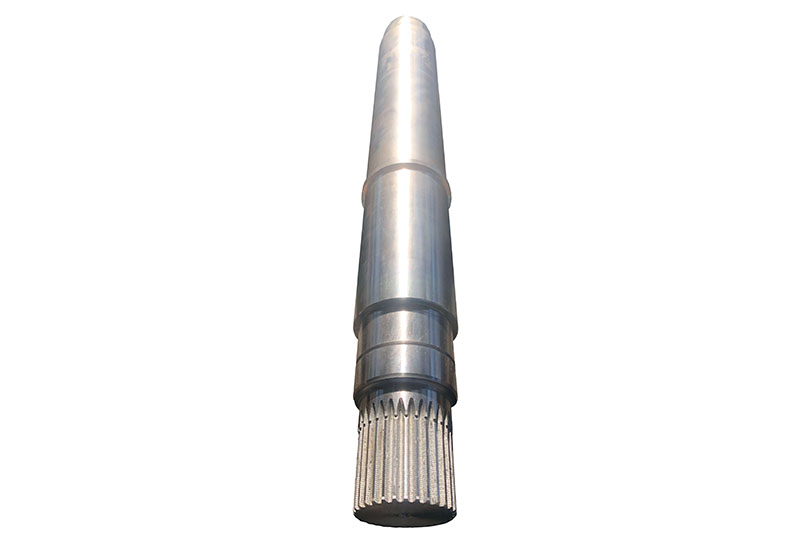

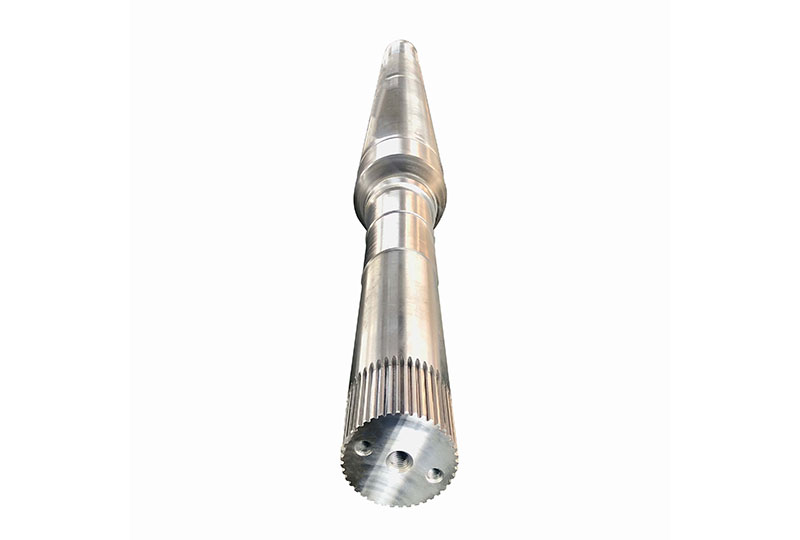

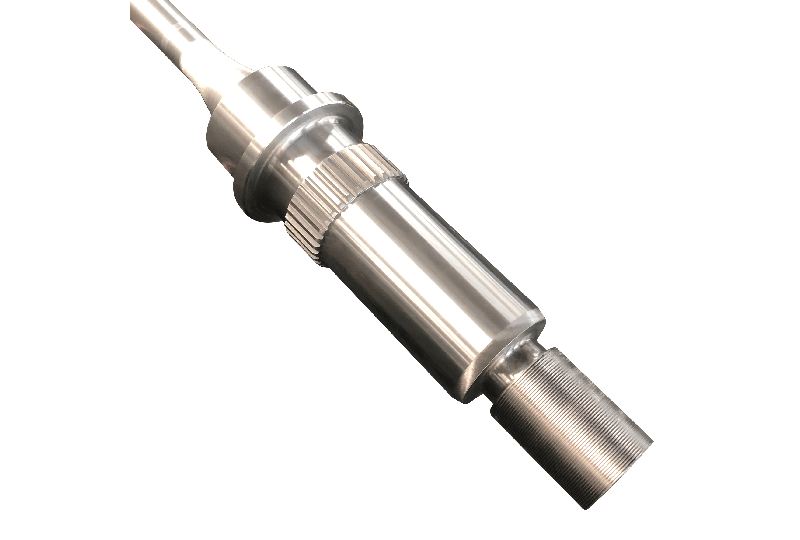

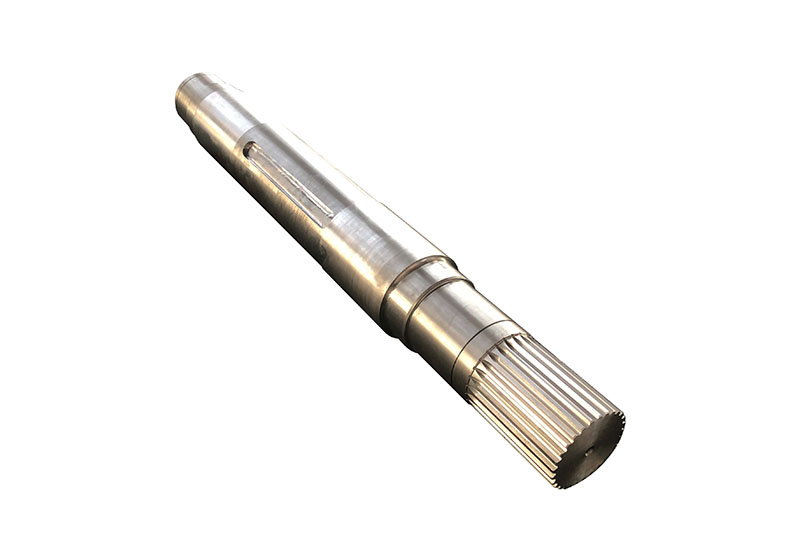

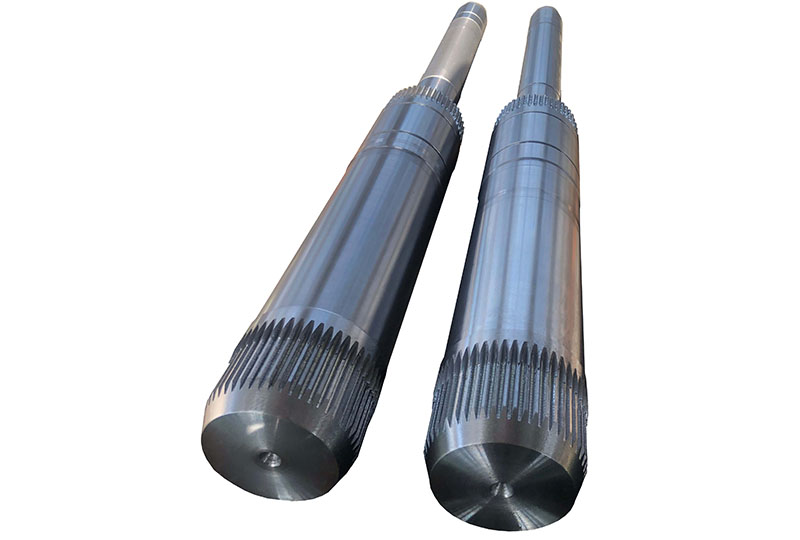

A splined shaft is a type of shaft component that features a spline structure, also known as a splined shaft or keyshaft. It plays a crucial role in mechanical transmission systems, providing the means for connecting and transferring power, torque, and motion.

Key characteristics and functions of a splined shaft include:

Spline Connection: The splined shaft has spline grooves that mesh with corresponding splines on other components, forming a reliable connection that prevents relative rotation between parts.

Torque Transmission: Through spline connections, the splined shaft transfers power and torque from one component to another, enabling mechanical transmission.

Positioning and Support: The splined shaft provides positioning and support, ensuring proper alignment and movement of corresponding components.

Material Selection: Splined shafts are typically made of high-strength alloy steel or other special materials to meet the demands of high loads and high-speed transmissions.

Safety: The spline connection offers a secure transmission link, preventing relative sliding between components and enhancing the safety of the transmission system.

Splined shafts find extensive applications in various mechanical transmission systems, including automotive gearboxes, industrial machinery, aircraft, ships, and more. Their design and manufacturing process consider factors such as transmission loads, speeds, precision, and material selection to ensure the stability and reliability of the transmission.
